UFSK International: Coffin Refrigeration Units with single doors

Coffin Refrigeration Units
with single doors

UFSK offers many variations of Coffin Refrigeration Units: with single or multiple tiers per door, with rack loading or sideways loading or Coffin Refrigeration Units with roll-in loading. Stability with system

General

All of our mortuary and coffin refrigeration/deep cooling units consist of stable, self-supporting wall, base and ceiling elements that are fabricated to exact specifications, delivered as individual components and fully assembled on site. Our structural sandwich design, which utilizes 80mm CFC-free rigid polyurethane foam, provides strong, long-lasting durability.

Component elements are attached together by a foamed, eccentric tension locking system, which guarantees extreme stability as well as hermetic sealing of gaps and joints. This design eliminates undesireable heat buildup resulting from thermal bridges and greatly enhances cooling efficiency. All hinges are completely crack and corrosion proof enabling easy disassembly or modification even after years of continuous use.

All doors and hatches are equipped with heavy-duty, chromed brass hinges, padlocks and all-around sealing.

Through continuous improvements in the manufacturing process, including the development and utilization of environmentally friendly, state-of-the-art technologies, we have been able to significantly increase the performance and efficiency of our products while dramatically reducing energy consumption.  Every unit supplied by UFSK is subject to a rigorous series of tests and inspections in our factory before being approved for release.

Options

Stainless steel surface grade 1.4301 (Standard: white)
Deep cooling -5° C
Deep cooling -18° C
Custom external dimensions
Backup cooling system

Specifications

Our coffin refrigeration units consist of strong, self-supporting build elements in a structural sandwich design, utilizing rigid 80 mm CFC free polyurethane foam. All surfaces, inside and out, are made of powder-coated sheet steel (standard white). Coffin refrigeration units are designed for an interior temperature of +3 °C/+5 °C.

  • Temperature range +3° C/ +5° C
  • Connections 230/240 or 380 V, 50 Hz, 16 A
  • Modifications such as deep cooling, 60 Hz or water cooling are available on request.


Standard delivery includes:

  • Coffin refrigeration unit with single doors
  • Interior consisting of solidly attached guide rails
  • Coffin sled
  • Cooling aggregate
  • Interior lighting
  • Optical Alarm
  • Name tag holder

The listed measurements are grid dimensions, and can be changed on request to perfectly match the dimensions of your room.



1 Coffin
Dimensions W/D/H in mm: 1210 x 2260 x 1210
For the storage of 1 coffin
Doors W/H in mm: 1-doors 800 x 800
Temperature range: +3°C/+5°C
Anschlusswerte 230/240 V – 50 Hz
Farbe Weiß Best. Nr. SKZ HS 1
Farbe Edelstahl Best. Nr. SKZ HS 1 C
2 Coffins
Dimensions W/D/H in mm: 1210 x 2260 x 2260
For the storage of 2 coffins on 2 levels
Doors W/H in mm: 2-doors 800 x 800
Temperature range: +3°C/+5°C
Anschlusswerte 230/240 V – 50 Hz
Farbe Weiß Best. Nr. SKZ HS 2
Farbe Edelstahl Best. Nr. SKZ HS 2 C
4 Coffins
Dimensions W/D/H in mm: 2260 x 2260 x 2260
For the storage of 4 coffins on 2 levels
Doors W/H in mm: 4-doors 800 x 800
Temperature range: +3°C/+5°C
Anschlusswerte 230/240 V – 50 Hz
Farbe Weiß Best. Nr. SKZ HS 4
Farbe Edelstahl Best. Nr. SKZ HS 4 C
6 Coffins
Dimensions W/D/H in mm: 3310 x 2260 x 2260
For the storage of 6 coffins on 2 levels
Doors W/H in mm: 6-doors 800 x 800
Temperature range: +3°C/+5°C
Anschlusswerte 230/240 V – 50 Hz
Farbe Weiß Best. Nr. SKZ HS 6
Farbe Edelstahl Best. Nr. SKZ HS 6 C
8 Coffins
Dimensions W/D/H in mm: 4360 x 2260 x 2260
For the storage of 8 coffins on 2 levels
Doors W/H in mm: 8-doors 800 x 800
Temperature range: +3°C/+5°C
Anschlusswerte 230/240 V – 50 Hz
Farbe Weiß Best. Nr. SKZ HS 8
Farbe Edelstahl Best. Nr. SKZ HS 8 C
10 Coffins
Dimensions W/D/H in mm: 5410 x 2260 x 2260
For the storage of 10 coffins on 2 levels
Doors W/H in mm: 10-doors 800 x 800
Temperature range: +3°C/+5°C
Anschlusswerte 230/240 V – 50 Hz
Farbe Weiß Best. Nr. SKZ HS 10
Farbe Edelstahl Best. Nr. SKZ HS 10 C

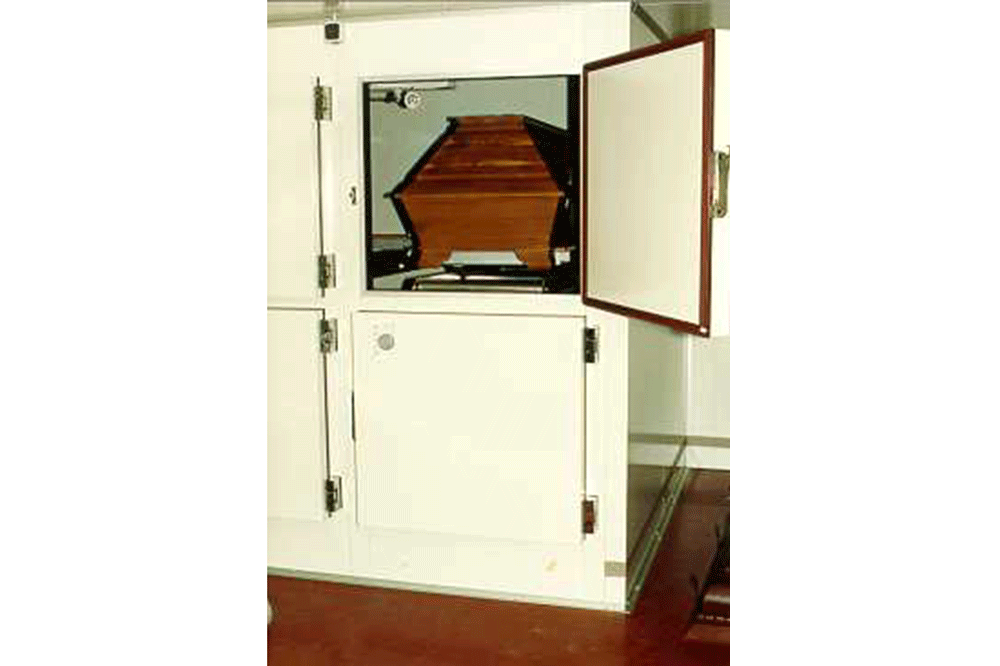

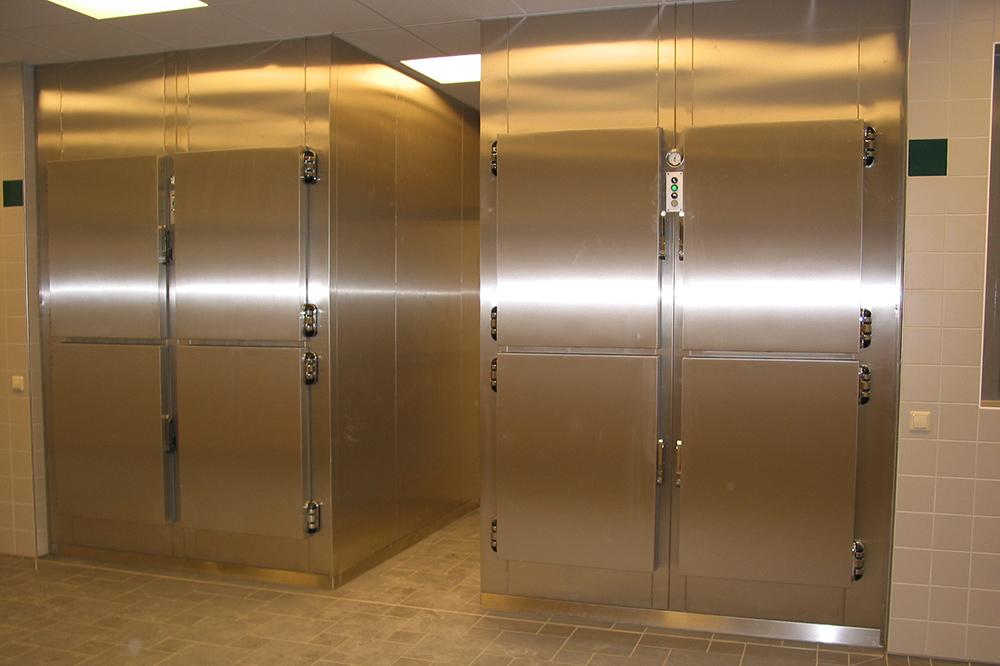

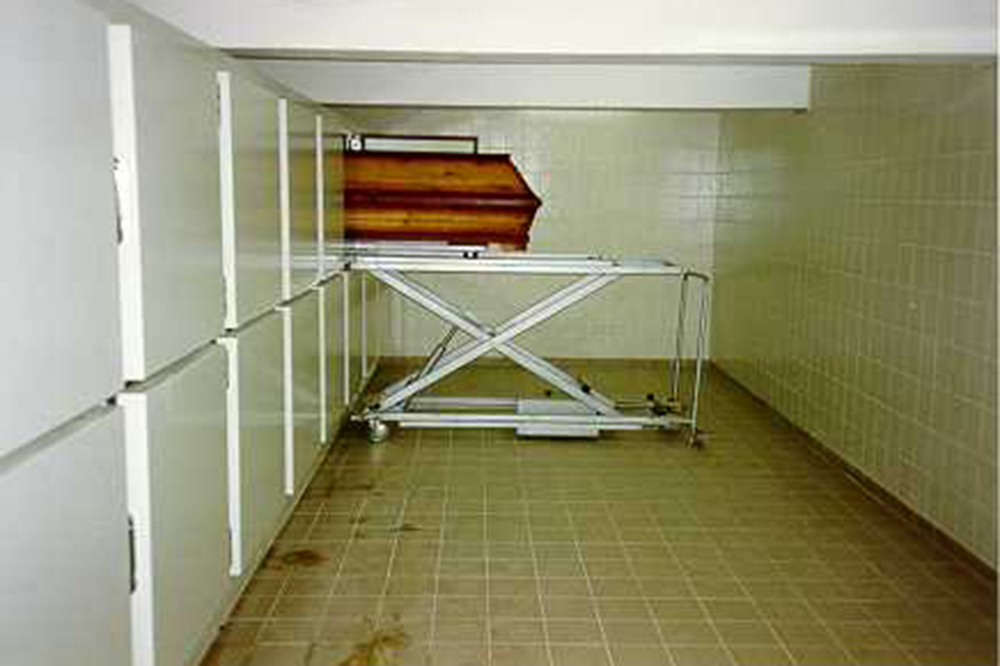

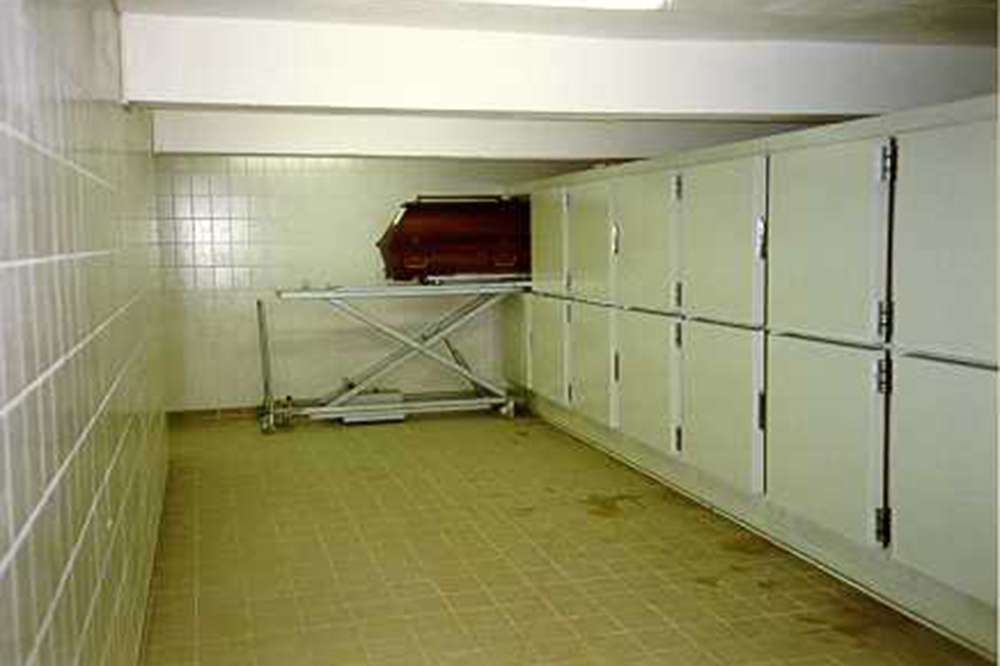

Reference Photos
