UFSK International: Coffin Refrigeration Units, Roll-in Loading

Coffin Refrigeration Units
with Roll-in Loading

UFSK offers many variations of Coffin Refrigeration Units: with single or multiple tiers per door, with rack loading or sideways loading or Coffin Refrigeration Units with roll-in loading. Stability with system.

General

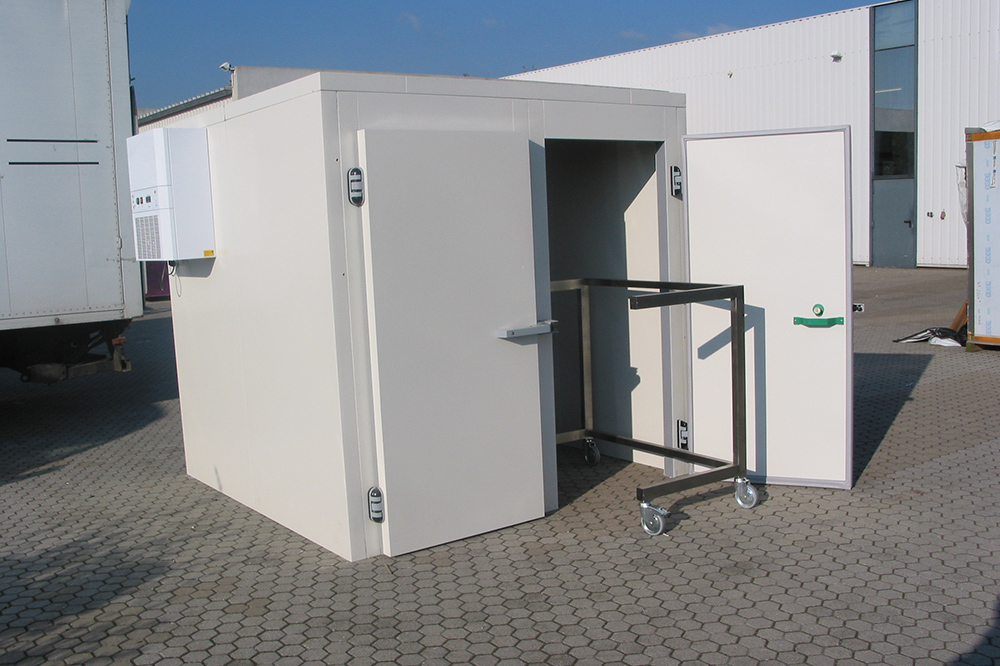

All of our mortuary and coffin refrigeration/deep cooling units consist of stable, self-supporting wall, base, and ceiling elements that are fabricated to exact specifications, delivered as individual components and fully assembled on site. Our structural sandwich design, which utilizes 80mm CFC-free rigid polyurethane foam, provides strong, long-lasting durability.

Component elements are attached together by a foamed, eccentric tension locking system, which guarantees extreme stability as well as hermetic sealing of gaps and joints.  This design eliminates undesireable heat buildup resulting from thermal bridges and greatly enhances cooling efficiency.  All hinges are completely crack and corrosion proof enabling easy disassembly or modification even after years of continuous use.

All doors and hatches are equipped with heavy-duty, chromed brass hinges, padlocks and all-around sealing.

Through continuous improvements in the manufacturing process, including the development and utilization of environmentally friendly, state-of-the-art technologies, we have been able to significantly increase the performance and efficiency of our products while dramatically reducing energy consumption.  Every unit supplied by UFSK is subject to a rigorous series of tests and inspections in our factory before being approved for release.

Options

Stainless steel surface grade 1.4301 (Standard: white)
Deep cooling -5° C
Deep cooling -18° C
Custom external dimensions
Backup cooling system

Specifications

Coffin Refrigeration Units

Our coffin refrigeration units consist of strong, self-supporting build elements in a structural sandwich design, utilizing rigid 80 mm CFC free polyurethane foam. All surfaces, inside and out, are made of powder-coated sheet steel (standard white). Coffin refrigeration units are designed for an interior temperature of +3 °C/+5 °C.

  • Temperature range +3° C/ +5° C
  • Connections 230/240 or 380 V, 50 Hz, 16 A
  • Modifications such as deep cooling, 60 Hz or water cooling are available on request

The listed measurements are grid dimensions, and can be changed on request to perfectly match the dimensions of your room.

Standard delivery includes:

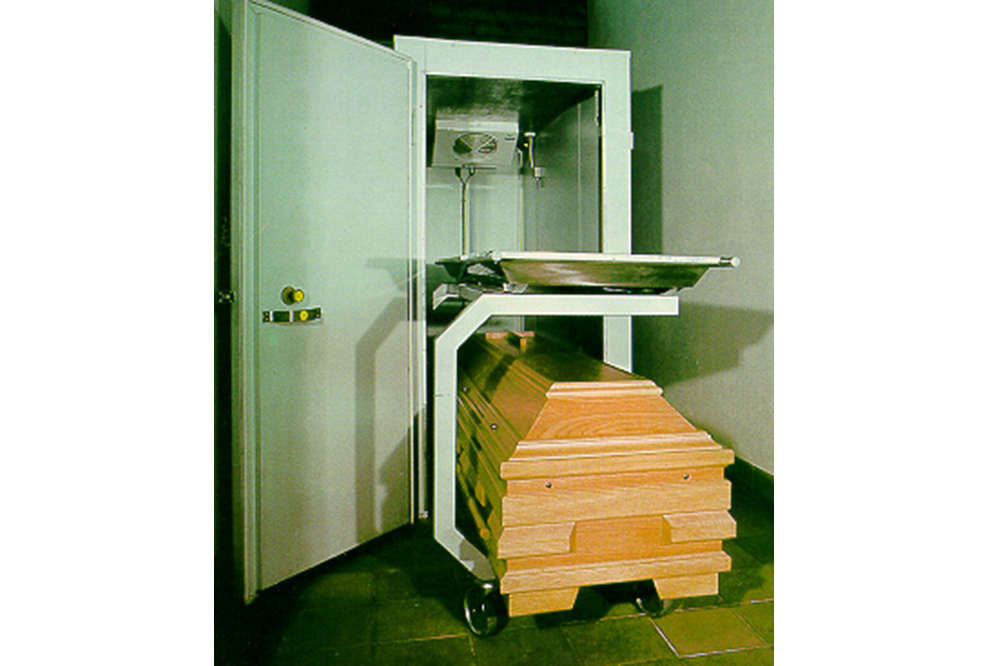

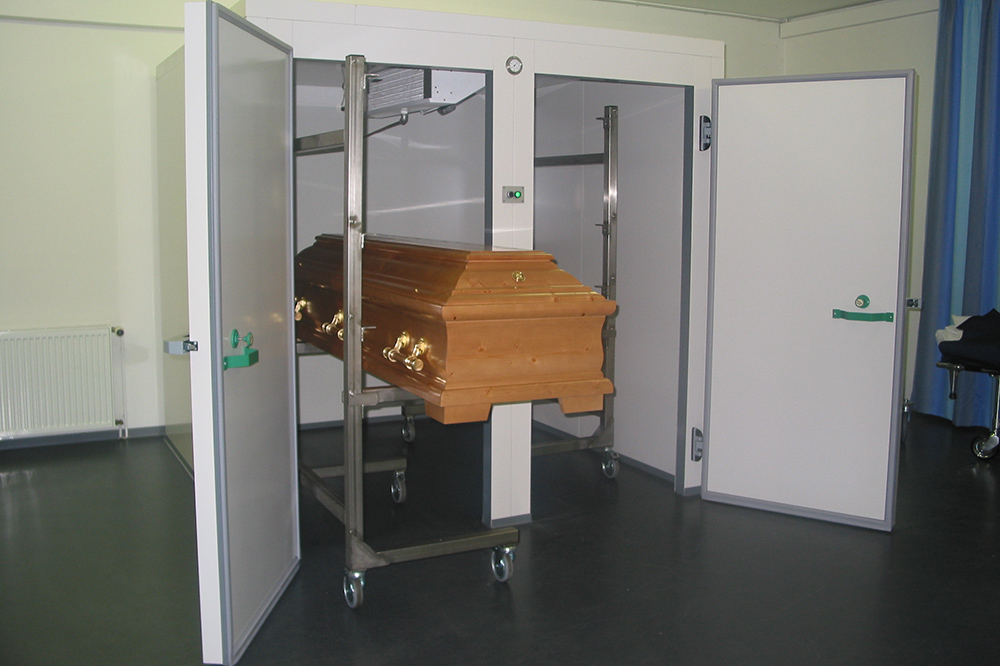

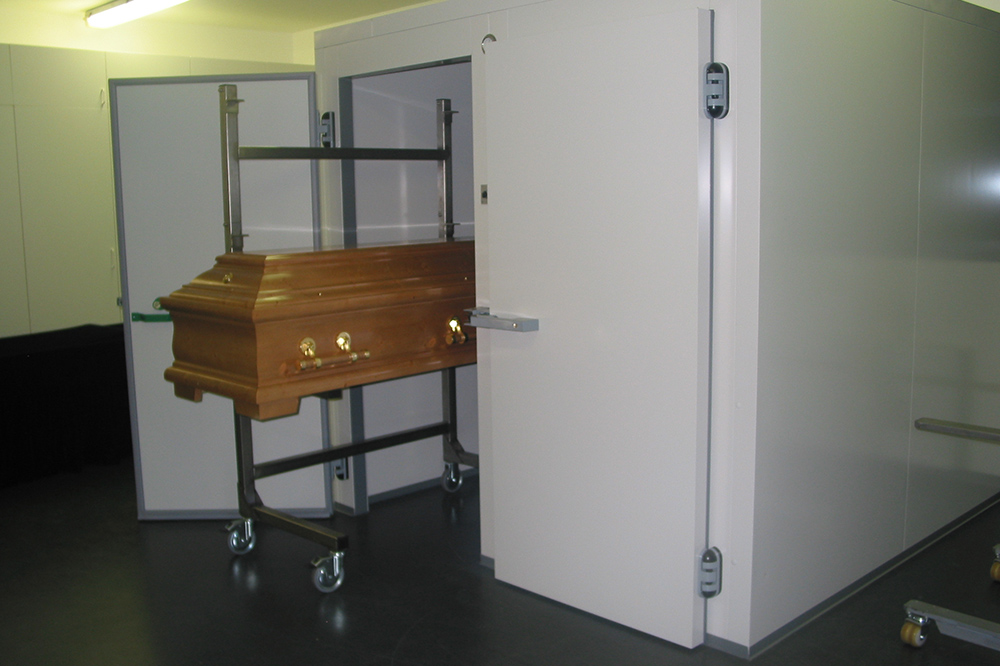

  • Roll-in coffin refrigeration unit for the storage of mobile coffin transport racks
  • Cooling aggregate
  • Interior lighting
  • Optical Alarm
  • Name tag holder

The listed measurements are grid dimensions, and can be changed on request to perfectly match the dimensions of your room.


2 Coffins 2 Tiers
Dimensions W/D/H in mm: 1210 x 2260 x 2180
For loading with 1 Coffin Transport Rack Model SRW HS 125/2
Doors W/H in mm: single door 850 x 1900
Temperature range: +3°C/+5°C
Connections: 230/240 V – 50 Hz
White Order-No. SKZ HS 2 DS
Stainless Steel. Order-No. SKZ HS 2
CDS
4 Coffins 2 Tiers
Dimensions W/D/H in mm: 2260 x 2260 x 2180
For loading with 2 Coffin Transport Rack Model SRW HS 125/2
Doors W/H in mm: 2-door 850 x 1900

Temperature range: +3°C/+5°C
Connections: 230/240 V – 50 Hz
White Order-No. SKZ HS 4 DS
Stainless Steel. Order-No. SKZ HS 4
CDS
6 Coffins 2 Tiers
Dimensions W/D/H in mm: 3310 x 2260 x 2180
For loading with 3 Coffin Transport Rack Model SRW HS 125/2
Doors W/H in mm: 3-door 850 x 1900

Temperature range: +3°C/+5°C
Connections: 230/240 V – 50 Hz
White Order-No. SKZ HS 6/3 DS
Stainless Steel. Order-No. SKZ HS 6/3 CDS

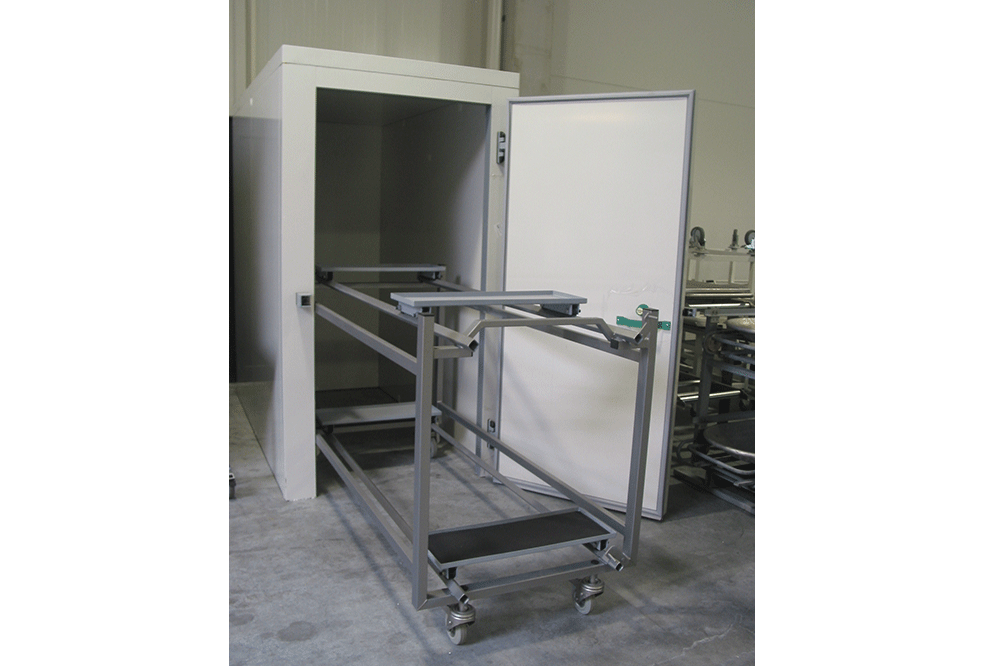

Coffin Transport Racks

Strong, tip-resistant construction with premium grade 1.4301 stainless steel with 2 cantilevers per level for the loading of coffins or cadaver trays.

The transport racks are equipped with heavy-duty, all-rubber Ø 125 mm casters, 2 for steering, 2 with brakes, including special lifetime-lubricated, maintenance free ball bearings.

Custom height and width dimensions are available on request.



Model SRW HS 125/2
Dimensions W/D/H ca. 1480 x 710 x 1030 mm
Lifting Capacity max. 400 kg
Weight ca. 80 kg
Material: Stainless Steel Grade 1.4301
Levels: 2


3 Coffin Lower Sections 3 Tiers
Dimensions W/D/H in mm: 1210 x 2260 x 2180
For loading with 1 Coffin Transport Rack Model SRW HS 125/2 or SRW HS 125 /3 V
Doors W/H in mm: single door 850 x 2000
Temperature range: +3°C/+5°C
Connections: 230/240 V – 50 Hz
White Order-No. SKZ HS 3 DS
Stainless Steel Order-No. SKZ HS 3 CDS
6 Coffin Lower Sections 3 Tiers
Dimensions W/D/H in mm: 2260 x 2260 x 2180
For loading with 2 Coffin Transport Rack Model SRW HS 125/2 or SRW HS 125 /3 V
Doors W/H in mm: 2-door 850 x 2000

Temperature range: +3°C/+5°C
Connections: 230/240 V – 50 Hz
White Order-No. SKZ HS 6 DS
Stainless Steel Order-No. SKZ HS 6 CDS
9 Coffin Lower Sections 3 Tiers
Dimensions W/D/H in mm: 3310 x 2260 x 2180
For loading with 3 Coffin Transport Rack Model SRW HS 125/2 or SRW HS 125 /3 V
Doors W/H in mm: 3-door 850 x 2000

Temperature range: +3°C/+5°C
Connections: 230/240 V – 50 Hz
White Order-No. SKZ HS 9 DS
Stainless Steel Order-No. SKZ HS 9 CDS
12 Coffin Lower Sections 3 Tiers
Dimensions W/D/H in mm: 4360 x 2260 x 2180
For loading with 2 Coffin Transport Rack Model SRW HS 125/2 or SRW HS 125 /3 V
Doors W/H in mm: 4-door 850 x 2000

Temperature range: +3°C/+5°C
Connections: 230/240 V – 50 Hz
White Order-No. SKZ HS 12 DS
Stainless Steel Order-No. SKZ HS 12 CDS
15 Coffin Lower Sections 3 Tiers
Dimensions W/D/H in mm: 5410 x 2260 x 2180
For loading with 2 Coffin Transport Rack Model SRW HS 125/2 or SRW HS 125 /3 V
Doors W/H in mm: 5-door 850 x 2000
Temperature range: +3°C/+5°C
Connections: 230/240 V – 50 Hz
White Order-No. SKZ HS 15 DS
Stainless Steel Order-No. SKZ HS 15 CDS



Coffin Transport Racks

Strong, tip-resistant construction with premium grade 1.4301 stainless steel with 2 cantilevers per level for the loading of coffins or cadaver trays.

The transport racks are equipped with heavy-duty, all-rubber Ø 125 mm casters, 2 for steering, 2 with brakes, including special lifetime-lubricated, maintenance free ball bearings.

Custom height and width dimensions are available on request.



Model SRW HS 125/2
Dimensions W/D/H ca. 1480 x 710 x 1030 mm
Lifting Capacity max. 400 kg
Weight ca. 80 kg
Material: Stainless Steel Grade 1.4301
Layers: 2

Model SRW HS 125/3
Dimensions W/D/H ca. 1480 x 710 x 1800 mm
Lifting Capacity max. 600 kg
Weight ca. 80 kg
Material: Stainless Steel Grade 1.4301
Layers: 3

Model SRW HS 125/3V
Dimensions W/D/H ca. 1480 x 710 x 1800 mm
Lifting Capacity max. 600 kg
Weight ca. 80 kg
Material: Stainless Steel Grade 1.4301
Layers: 3, the cantilevers of the 2nd and 3rd levels are adjustable
Model SRW HS 125/4
Dimensions W/D/H ca. 1550 x 750 x 1800 mm
Lifting Capacity max. 800 kg
Weight ca. 95 kg
Material Edelstahl Werkstoff Nr. 1.4301
Layers: 4

Model SRW HS 125/4V
Dimensions W/D/H ca. 1550 x 750 x 1800 mm
Lifting Capacity max. 800 kg
Weight ca. 95 kg
Material: Stainless Steel Grade 1.4301
Layers: 4, the cantilevers of the 2nd through 4th levels are adjustable

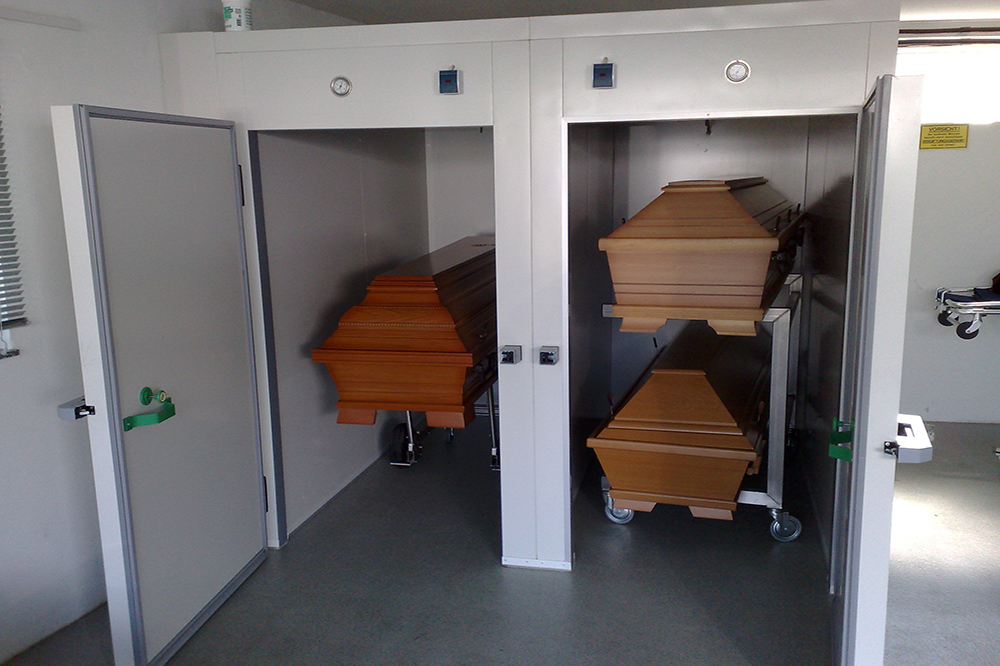

Referenzbilder
